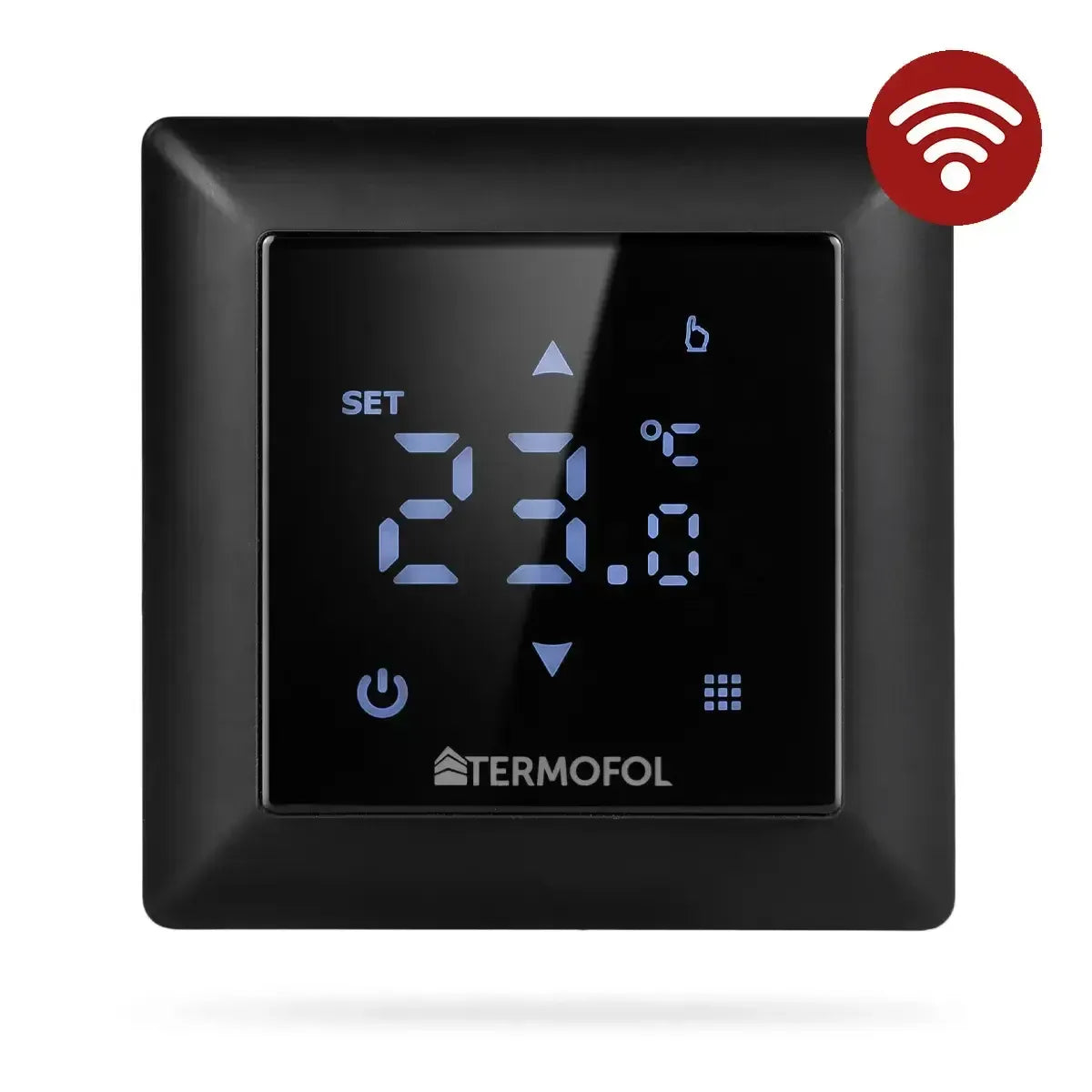

TF H6 Black Thermostat (WIFI)

The thermostat can be freely programmed with the weekly work schedule. The entered schedule is repeated every week, so you forget about manually setting the temperature. It is important to be able to change the temperature temporarily. The TF-H6 WIFI thermostat protects household members against potential overheating of the heating system and informs about any irregularities related to the installation. In the event of a failure of the outdoor temperature sensor, the thermostat displays a message and turns off the heating system, so you can be sure that the installation is always safe.

Technical specifications

• Power consumption: <1.5 W
• Temperature range: 1-70 ° C,
• Maximum temperature limitation heaters – floors: 20 ° C – 70 ° C,
• 2 sensors: built-in temperature sensor air + floor temperature sensor NTC sensor,
• Maximum load on the output: 16A,
• Degree of protection: IP31,
• Power supply: 230 AC,
• Hysteresis: 0.5–2.5 ° C,
• Hysteresis of the external sensor: 1-9 ° C.

Characteristics

• Touch buttons control,
• Temperature programming 5 + 2/6 + 1/7 days,
• Installation method: flush-mounted – in the installation box,
• Warranty: 12 months,
• Slim shape – only 12mm thick,
• Snow white color,
• White backlight,
• Signaling – heating turned on,
• Possibility of manual temperature control,
• Can be installed in multiple frames
• (different manufacturers),
• External sensor – floor included.

The kit contains

• Thermoregulator with built-in temperature sensor
• External floor temperature sensor with cable
• Box
• Installation screws
• Instructions in English
